Intel B660 MicroATX マザーボード
[特徴]
・第 12 世代 Intel Core プロセッサー対応
・Dual チャンネル Non-ECC Unbuffered DDR4, 2 スロット搭載
・6+2+1 デジタル電源フェーズ設計
・2.5 GbE 有線 LAN
・2連 NVMe PCIe 4.0 x4 M.2 スロット
・高品質音響コンデンサ amp; ノイズガード搭載
・Smart Fan 6
・Q-Flash Plus
[仕様] CPU 1. LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors*
2. L3 cache varies with CPU
* Please refer to "CPU Support List" for more information. チップセット Intel B660 Express Chipset メモリー 1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) 内蔵グラフィック Integrated Graphics Processor-Intel HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.) オーディオ 1. Realtek Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings gt; Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 拡張スロット 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

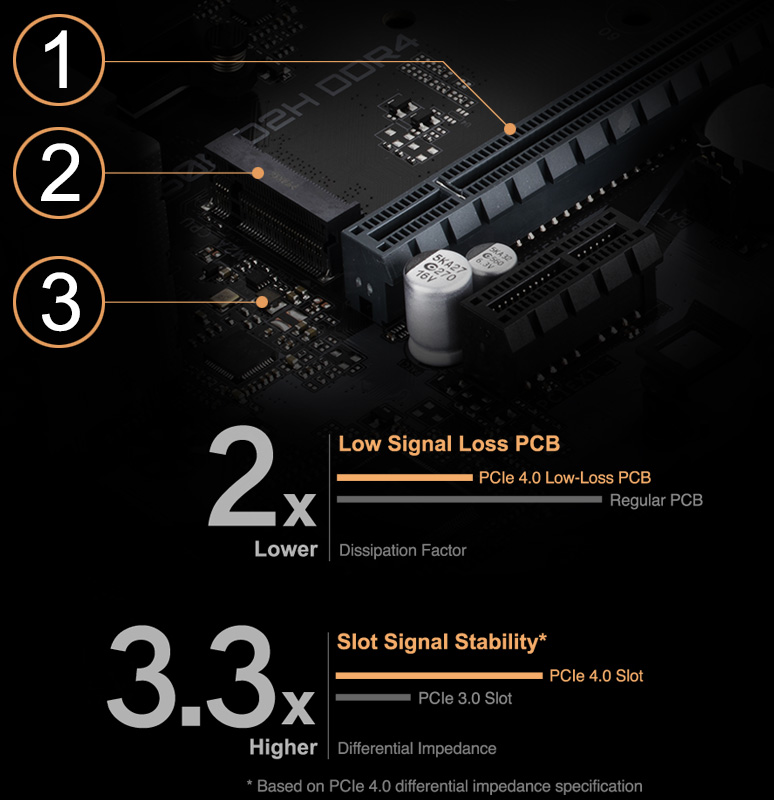

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2. 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.) ストレージインターフェース CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. USB Chipset:
1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers 内部入出力コネクタ 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. バックパネルコネクタ 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks I/O コントローラー iTE I/O Controller Chip ハードウェアモニター 1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 特徴 1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install バンドルソフトウェア Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility オペレーティングシステム Support for Windows 11 64-bit
Support for Windows 10 64-bit フォームファクター Micro ATX Form Factor; 22.5cm x 24.4cm
JAN：0889523030875
|
